Nov 16, 2013 [ ROM ] MK808 Mini PC Android 4.2.2 JellyBean custom root firmware. ARCTABLET NEWS. Home; Forum; Tablets. TWRP/CWM Flash-Tool.

Quote: o put the mk808 into flash mode the easy way: 1) Remove any SDcard you may have installed. 2) Connected the supplied USB cable from the device OTG port to your PC. It will power up and windows may detect the device. DO not worry about that. We need it powered up.

3) In the ROM kit run the ROM FLash Tool.exe. 4) YOu should see at the bottom it says 'Found RKAndroid Mass Storage USB' If it does not say that go into settings and make sure that a) USB storage is turned ON b) Under developer options, USB debugging is turned off 5) Once it says 'Found RKAndroid Mass Storage Usb' in the flash tool click the 'Reboot to Flash Mode' button. 6) Wait up to at least 10 seconds. The unit should reboot and the screen for the mk808 will be black (no ouptut). 7) If the unit does not reboot to a blank screen, repeats steps above Congrats!

You are now in flash mode! To get out of it at any time just unplug the USB power to the mk808. It will boot back up normally out of flash mode. If reboot to flash mode does not work, then use this alternate proceedure.

In my ROM kit is another folder called alternate_reboot_to_flash_tool This is the RKBatch tool. Run this tool and the 1 box should be pink. If it is not pink again make sure: a) USB storage is turned ON b) Under developer options, USB debugging is turned off Once you have a pink box, Click the 'switch' button at the bottom and this should put it into flash mode.

Close this RKBtach tool now. Quote: Flash mode using the reset button: If you do not ever see the flash tool say 'Found RKAndroid MASS Storage USB' Or reboot to flash mode does not work, then use this manual proceedure. 1) Have the USB cable unplugged.

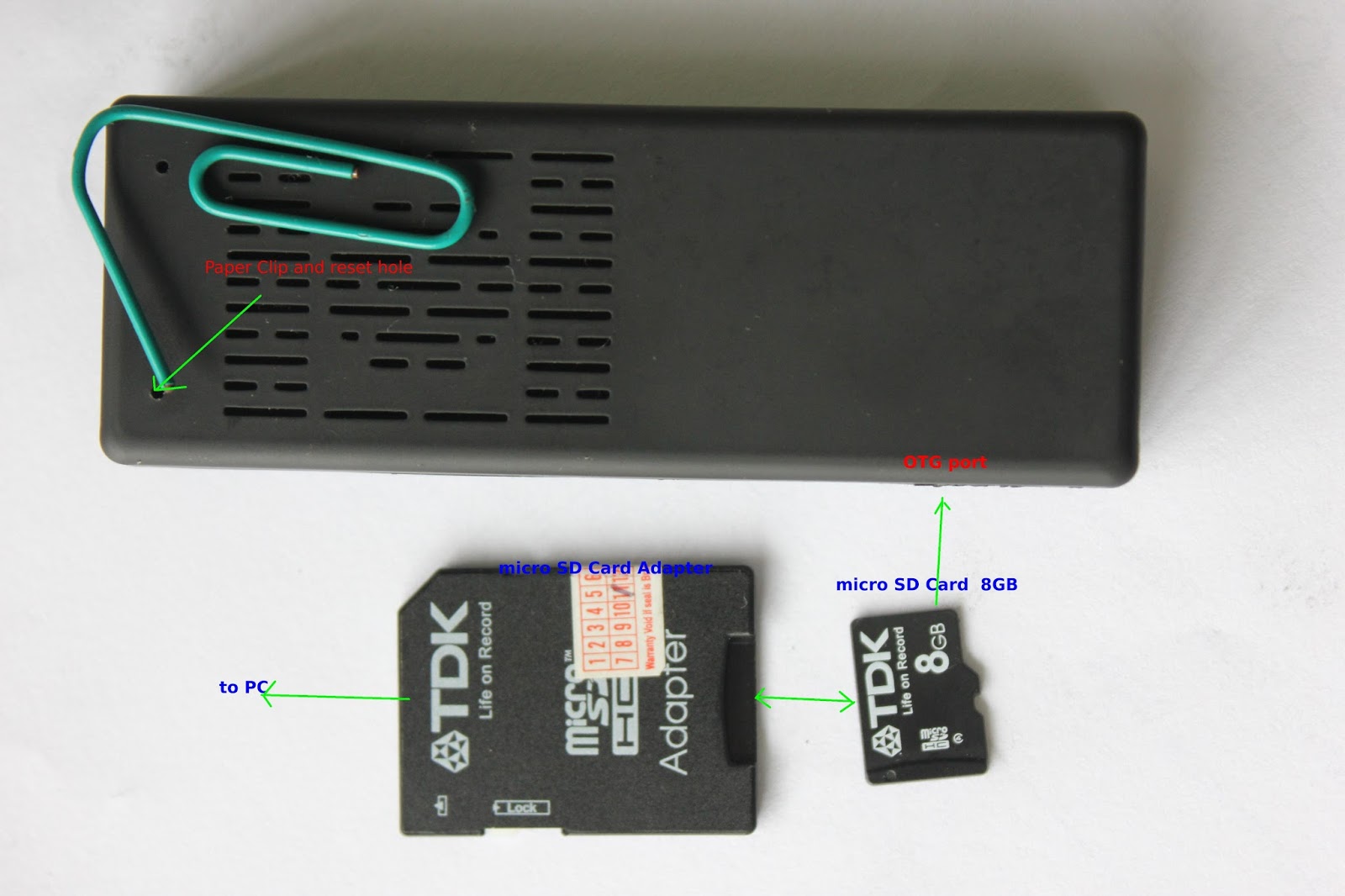

2) Near the HDMI port are 2 holes in each corner. One is the blue LED hole. The other in the corner is a reset button under the hole. Use a paper clip or something to push the reset button in this hole. I actually enlarged the hole so a paper clip would fit. You will feel the button 'click' when you are on it. 3) Hold this button down and while holding it, plug the USB cable from the PC to the OTG port on the mk808. Giant Sand Valley Of Rain Rapidshare Downloader here.

4) YOu should here windows BONG it found a new device. The LED will not light! 5) You are now in ROM flash mode.

Read below for installing drivers.

The MK808 manufacturer has just published an Android 4.2 Jelly Bean firmware update for their MiniPC. We have modified the firmware to provide root control thru SuperSU, extended storage space for apps and cleaned up Chinese and unnecessary apps. Mit Erfolg Zur Dsh Pdf.
